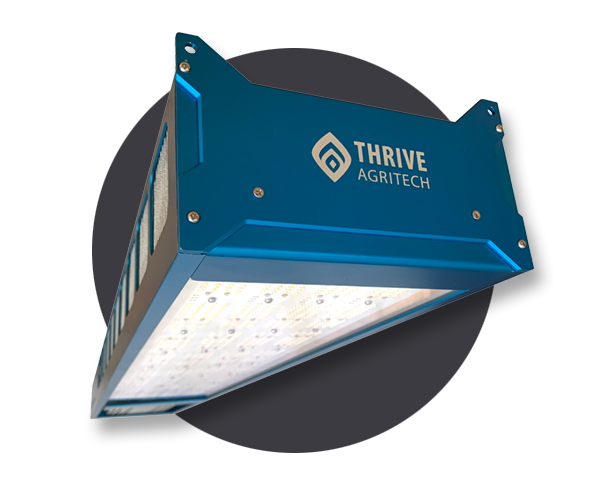

Pinnacle HP

840W LED Grow Light

Setting a new standard in high performance lighting

Thrive Agritech’s 840W Pinnacle HP is the ultimate solution for indoor farms and greenhouses where maximizing plant production yields are driving your business.

BENEFITS

Lots of Light

The innovative design of the Pinnacle HP light enables an amazing 2,350 µmols/sec without the need for active cooling such as water or fans. The high intensity light means your plants will be getting plenty of light for peak photosynthesis, plant health, and crop yield.

High Intensity with Fewer Lights

It’s true – less can be more! As an 840 watt LED fixture, the Pinnacle HP delivers high intensity light onto the canopy with far fewer lights than typical 600W LED lights. And having fewer lights makes life is easier for you during installation and beyond.

Minimize Shadowing

For greenhouses, having fewer lights also means less shadowing of the canopy and better crop production.

A Reliable, Dependable Workhorse

Sleep well at night knowing Thrive Agritech has a demonstrated track record of designing and manufacturing the most reliable LED lights in the horticulture industry. And with a 5-year warranty and 50,000 hour lifetime, the Pinnacle HP is no exception.

ETL Certified, DLC Listed

Industry safety and performance certifications provide peace-of-mind that you are installing a high quality light fixture that delivers in every way possible.

Specifications and Additional Information

Download our PDFs to learn more about the Pinnacle HP 840W LED grow light. Each download includes essential information about installation and more.

Download Installation Manual

Download Datasheet PDF

Lighting Design Guides

840Watts

Input Power

2,350umols/sec

Photon Flux

2.8umols/joule

Efficiency

Dimensions
43.3″ x 7.9″ x 4.4″

Beam Angle
120 degrees

Input Voltage
120V-277V

Dimming
0-10V

Waterproof
IP66

Weight
29.8 lbs.

Lifetime
50,000 hours (Q90/B20)

Certifications
UL, ETL, DLC

Warranty
5 years

APPLICATIONS

Pinnacle HP for Indoor Farming

Pinnacle HP delivers a high intensity blanket of light to the canopy that results in healthier plants and higher yields.

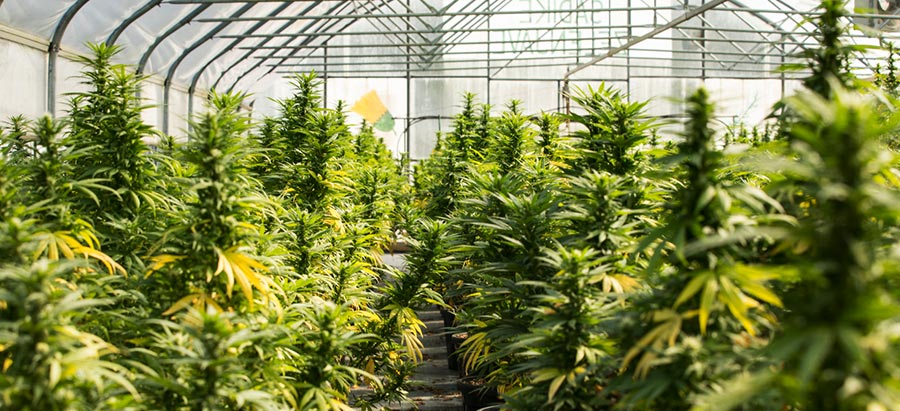

Pinnacle HP for Greenhouses

At 840W, the Pinnacle HP provides the intensity of light needed on the canopy – but with fewer light fixtures and less shadowing.

Need Help With Your Lighting Layout?

Indoor Farming: Cannabis Flower

PPFD up to 2,000 umoles/m2/sec

Greenhouse Supplemental Lighting

Add 10-40 moles of light per day

Pinnacle 840W LED Grow Light Q&A

What is the light spectrum for Pinnacle HP?
Pinnacle HP has our standard full white light spectrum that includes far-red wavelengths for the healthiest and most productive crops.

How is it possible to have an 840W light fixture that doesn’t need active cooling?
Thrive Agritech prides itself on bringing innovative lighting solutions to the horticulture industry. The thermal management design of the Pinnacle HP quickly removes heat from the LED chip and directs it into the ambient air. The result is a highly reliable light with a 50,000 hour lifetime rating!

Learn more about Thrive Agritech’s LED light products to find the optimal lighting solution for your business.
