What is the light spectrum for Pinnacle HP?

Pinnacle HP has our standard full white light spectrum that includes far-red wavelengths for the healthiest and most productive crops.

How is it possible to have an 840W light fixture that doesn’t need active cooling?

Thrive Agritech prides itself on bringing innovative lighting solutions to the horticulture industry. The thermal management design of the Pinnacle HP quickly removes heat from the LED chip and directs it into the ambient air. The result is a highly reliable light with a 50,000 hour lifetime rating!

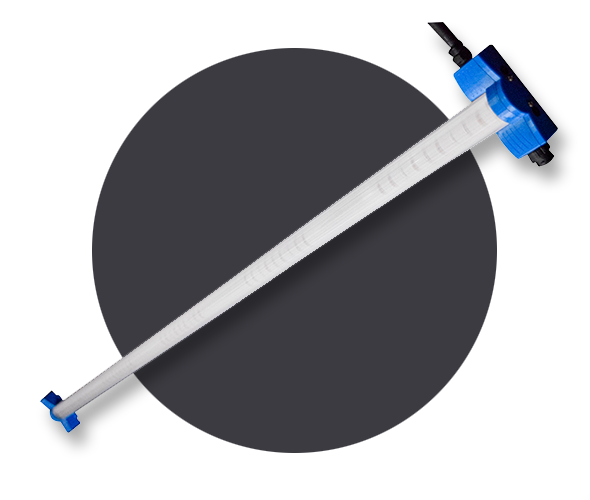

Strata

30W LED Vertical Farming Grow Light

CONTACT THRIVE

A Scalable Lighting Solution that Fits your Farm Like a Glove!

Strata represents the next generation vertical farming light. Installation is quick, easy, and highly scalable for even the biggest vertical farms.

BENEFITS

Simplified Installation and Maintenance

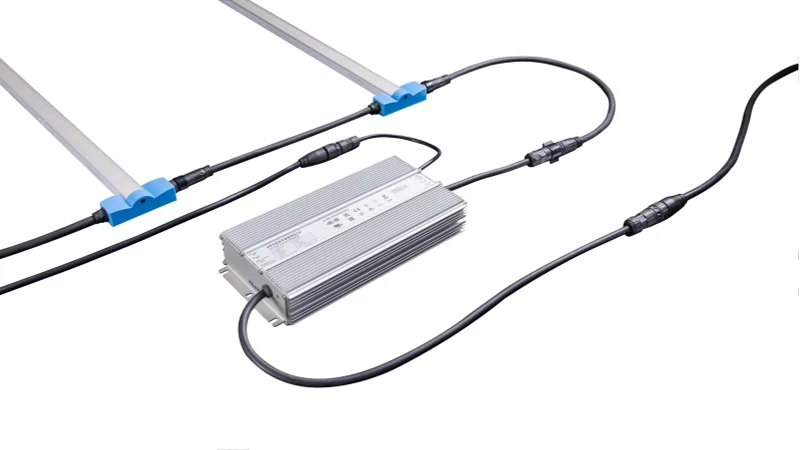

Strata lights are powered by an external driver, making installation and maintenance easier and less expensive. In a well-designed LED light, the driver is normally the first component to fail. Strata drivers can be located so they are easily accessible if one ever needs to be replaced.

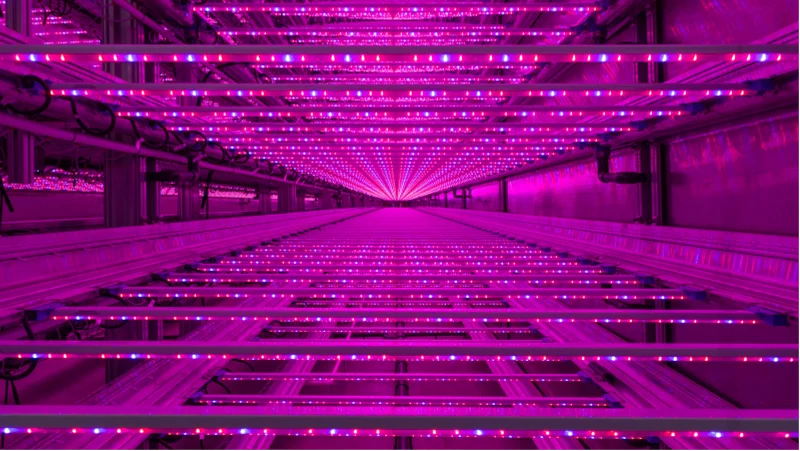

Increased Yields with Reduced Energy Costs

It is important to have a lighting system that can provide the appropriate intensity and spectrum of light for the specific plants being grown. Strata is available in our full white spectrum as well as blue, red, far red spectrum. Both spectra are optimized for plant growth and energy efficiency, resulting in big harvests and small energy bills.

Near-Perfect Light Uniformity

Although perfection is aspirational, lighting designs with Strata come close. The flexibility of the individualized Strata light bars enables solutions that deliver the required intensity of light that varies by only a few percent across the canopy – even when the plants are 6” from the lights.

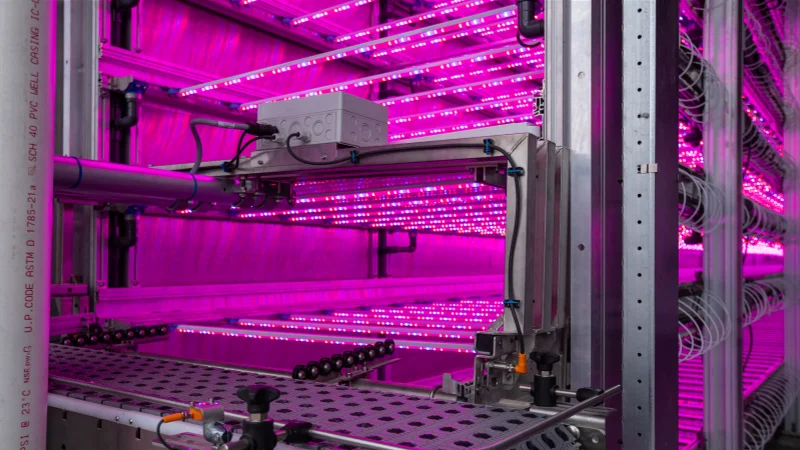

A Reliable, Dependable Workhorse

High reliability LED lights can provide consistent and optimal performance even in demanding environments. Thrive Agritech has a demonstrated track record of designing and manufacturing the most reliable LED lights in the horticulture industry.

ETL Certified

Industry safety and performance certifications provide peace-of-mind that you are installing a high quality light fixture that delivers in every way possible.

Specifications and Additional Information

Download our PDFs to learn more about the Strata LED grow light. Each download includes essential information about installation and more.

Download Installation Manual

Download Datasheet PDF

Lighting Design Guide

30Watts

Input Power

up to 105umols/sec

Photon Flux

up to 3.5umols/joule

Efficiency

Dimensions
47.2” x 0.9” x 1.1”

Beam Angle
120 degrees

Input Voltage
120V-277V

Dimming
0-10V

Waterproof
IP66

Weight
1 lbs.

Lifetime
40,000 hours (Q90/B20)

Certifications
UL, ETL, DLC

Warranty
5 years

APPLICATION

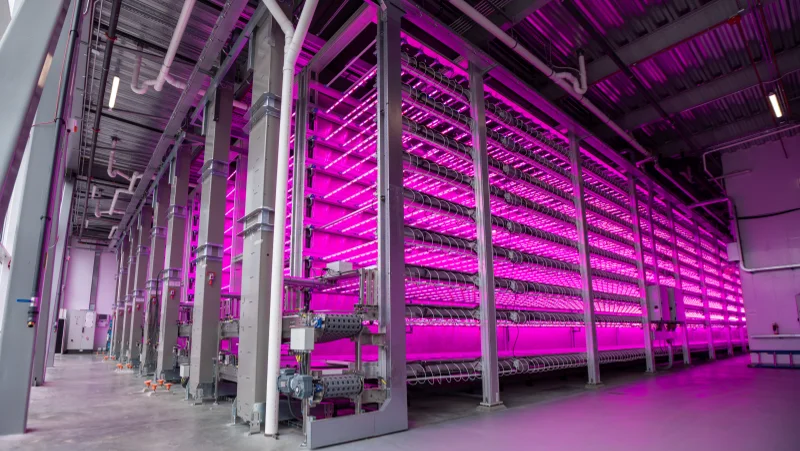

Strata for Vertical Farming

Strata is an energy efficient solution for vertical farms that delivers highly uniform light to the canopy and utilizes an external driver that lowers initial capital expense as well as on-going operating expenses

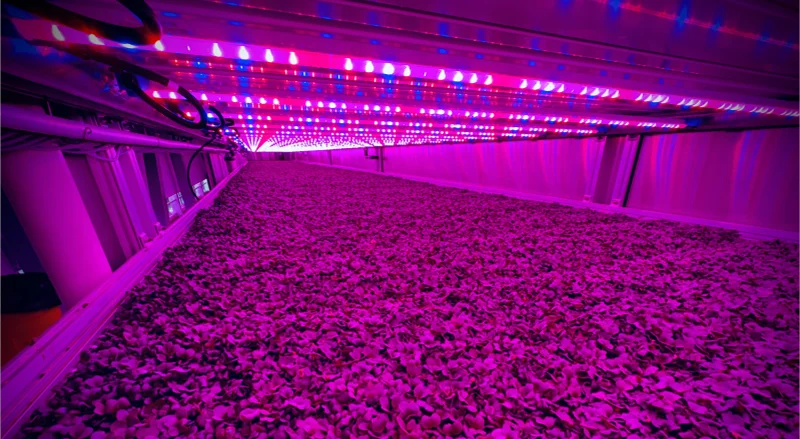

Vertical Farming: Leafy Greens, Microgreens, Herbs, Vegetables

Optimal Spectrum, Light Intensity, and Uniformity

Need Help With Your Lighting Layout?

Strata LED Grow Light Q&A

What spectra are available for Strata?
Thrive’s standard broadband white light spectrum and a vertical farming specific red, blue, far red (RBFR) spectrum are available for the Strata. See the Strata datasheet for more information.

Why is an external driver preferred over internal drivers?
Strata’s external driver lowers the overall project cost, and also reduces installation and maintenance cost and complexity.
